1. Project Summary and Scope
Vortex Lithium PK successfully engineered, manufactured, and delivered 100 units of high-specification, custom-built Lithium Iron Phosphate ($\text{LiFePO}_4$) battery packs. These packs are designed to serve as the highly reliable power source for truck Global Positioning System (GPS) trackers used by the fleet operating under Honda Ringroad Lahore. The core requirement was to deliver a power solution that guarantees maximum longevity, stability, and safety under extreme operational conditions.
2. Deep Dive: Technical Specifications
The solution was built around a few critical, high-performance components:
| Feature | Specification | Technical Rationale |
| Cell Chemistry | LifePo4 | Chosen over Li-ion for its superior thermal and chemical stability, significantly reducing the risk of thermal runaway in high-temperature truck environments. |
| Cell Model | 32700 Cylindrical Cells | These large format cells offer a robust mechanical structure and higher energy capacity compared to smaller cell formats, improving overall pack durability and runtime. |
| Configuration | 1S4P (4 Cells) | This configuration delivers a nominal operating voltage of 3.2V with enhanced capacity (4 times the capacity of a single cell) and high current capability. |
| BMS | 100A LFP Battery Management System | An over-spec’d BMS used to handle potential high-current spikes, providing crucial protection circuits for over-charge, over-discharge, short-circuit, and cell balancing. |
| Enclosure | Custom Fiberglass Box | Offers superior insulation and mechanical strength. Fiberglass is non-conductive, highly heat-resistant, and provides an excellent seal for water/dust ingress protection (IP-rating). |
3. Engineering Focus: Durability and Safety
The main engineering challenge was addressing the harsh operating environment within a truck chassis.
A. Thermal and Vibration Resistance
- Fiberglass Casing: The use of fiberglass directly mitigates the two biggest threats: high engine bay temperatures and road vibration. Fiberglass withstands high heat without warping or degrading.
-
Internal Spacing: Precision-fit spacers were incorporated between the cells. These spacers not only isolate the cells physically to absorb vibration but also ensure a uniform gap to facilitate any necessary passive heat dissipation, preventing hot spots.
B. Water and Dust Protection
-
The sealed fiberglass enclosure provides a high degree of protection against water splashes and fine road dust, which are common issues leading to shorts or corrosion in exposed battery terminals or PCBs. This is essential for the long-term reliability of a vehicle-mounted electronic component.
4. Project Impact and Client Value

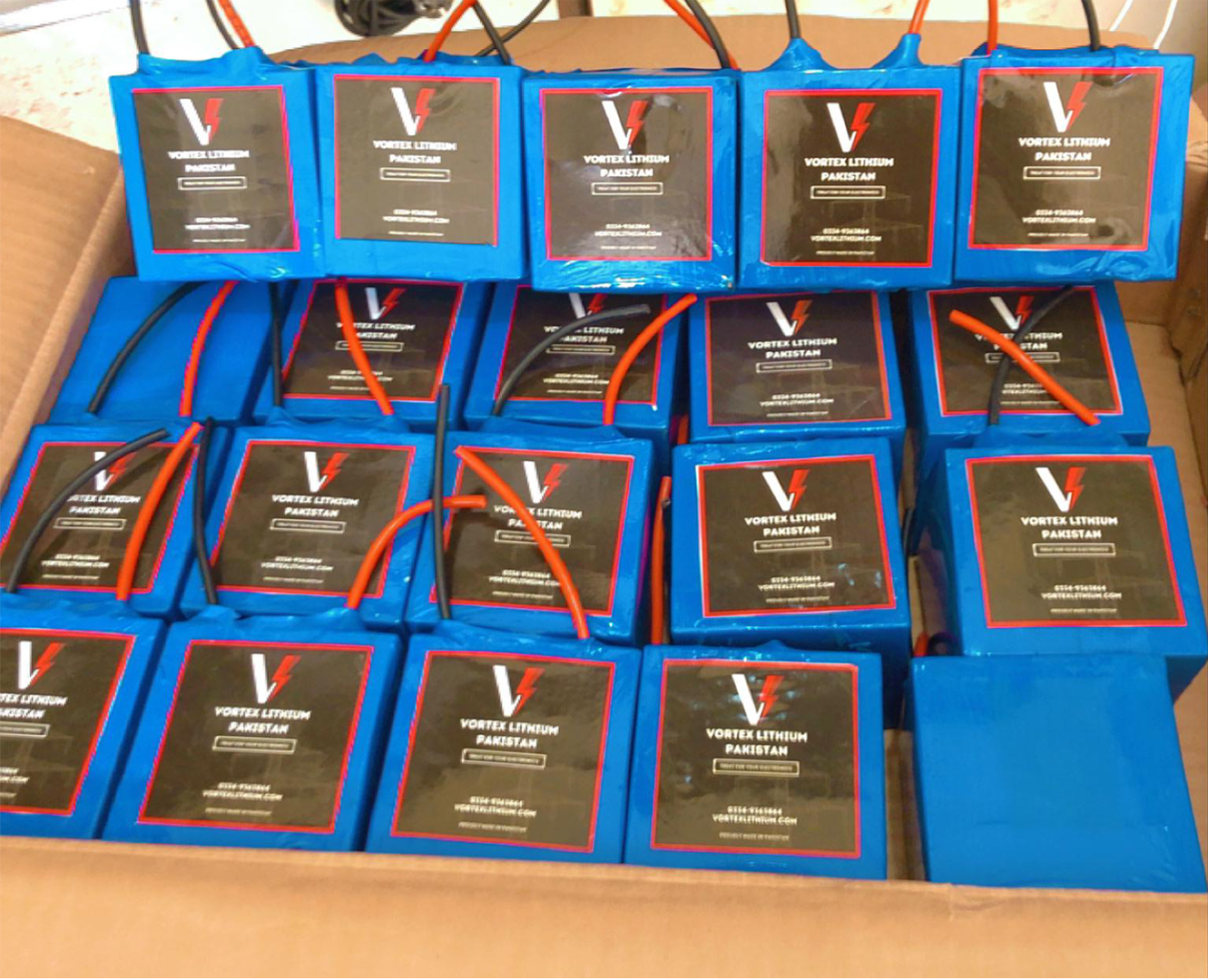

The delivered 100 LiFePO4 battery packs provide the client with:
-
Extended Service Life: LIFEPO 4 offers significantly more charge/discharge cycles than traditional lead-acid or standard lithium-ion, resulting in lower replacement costs and fewer maintenance interruptions.
-
Uninterrupted Tracking: The highly stable chemistry and robust BMS ensure the GPS unit remains powered, even during periods of high demand or transient electrical spikes, maintaining critical fleet oversight.
-
Enhanced Safety: The inherent non-flammability of the LFP chemistry combined with the rugged fiberglass box and comprehensive BMS provides a level of safety paramount for vehicle electronics.
